MAIN FEATURES

POWERFUL PERFORMANCE & LONG-RANGE VISIBILITY

• Equipped with 6+1+1 high-performance LED chips, providing superior lighting output; brightness is 3 times that of standard halogen lights.
• Each projection lens is equipped with 6 LED chips as a low beam and 6+1+1 LED chips as a high beam, ensuring clear and focused light.
• With 48W/per low beam and 72W/ high beam output, with an illumination distance of up to 23000LUX, providing you with a wider field of view.

INDEPENDENT DUAL DIRECT-PROJECTION BEAM DESIGN

• Triple surface spotlight design, 2 independent direct light sources. Longer and more powerful range, stronger penetration power.
• Dual-reflector optical design optimises both high and low beam distribution for perfect road coverage.
• Minimizes scattered light and glare for oncoming drivers, improving safety for all road users under various driving conditions.

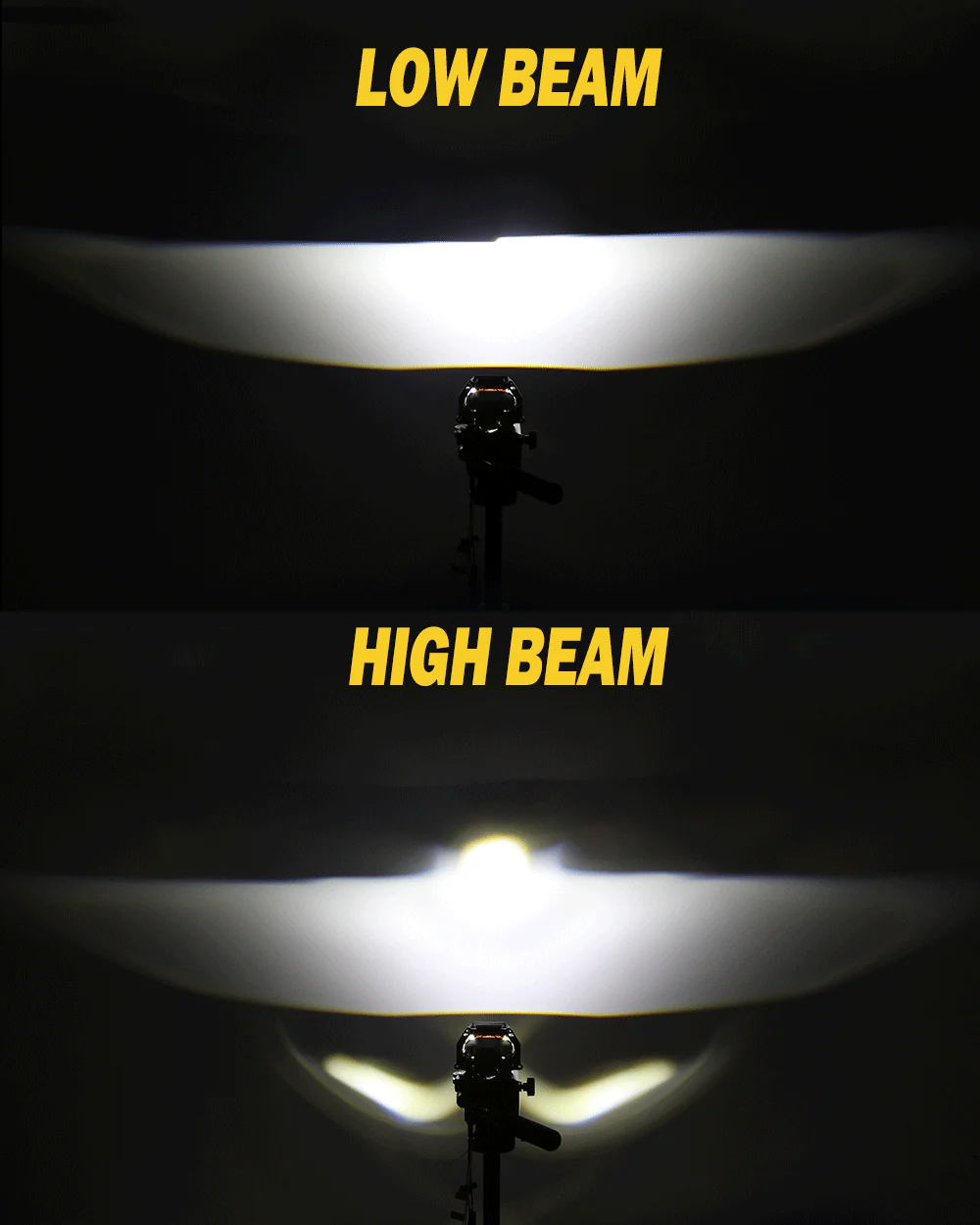

PERFECT BEAM PATTERN

• Low Beam: Features a clearly defined tangential cut-off and wide-angle illumination with a precise focal point. Delivers a sharp cut-off line and a uniform beam pattern free of blind zones or dark spots.
• High Beam: Offers an accurately focused, long-range spotlight with zero astigmatism. Projects a wide and evenly distributed beam pattern for enhanced road coverage.
• Auxiliary High Beam (Square Spotlight): Projects an intensely focused, square-shaped hotspot with extreme brightness and exceptional long-range penetration. The distinct geometric pattern provides superior road sign illumination and is ideal for high-speed driving or navigating poorly lit environments.

CUSTOM RETROFIT INSTALLATION

• This projector lens requires modification of the headlight housing(such as cutting or trimming the reflector bowl) to fit properly.
• It is not a plug-and-play design. Professional installation by an experienced retrofit workshop is strongly recommended to ensure optimal lighting performance and safety.
• Critical Note: Installation involves permanent alteration of the original headlight assembly. Please confirm your willingness to modify your vehicle before purchase.

EFFICIENT HEAT DISSIPATION SYSTEM

• Double ball imported bearing, silent fan + efficient heat dissipation system, providing higher performance and extending the service life of the lamp body.

SPECIFICATIONS

Size: 3 Inch
LED Chips: 6+1+1pcs LED Chips
Power: Low Beam 48W/per, High Beam 72W/per
Operating Voltage:12V
LED Quantity(per bulb): 8PCS
Color Temperature: 6000K White
Luminous Flux: Low Beam 7000LUX, High Beam 23000LUX
Adapter Type: H4, H7, 9005, 9006
Material: Aluminum Alloy Body + High Clear Lens
Heat Dissipation Mode: Built-in Heat-Sink Fan
LED Lifetime：30,000 Hours
Operating Temperature: -40°C degree~120 °C degrees

PACKAGE INCLUDED

• 3 Inch Hyperboloid Bi-LED Projector Lens Headlight *2
