MAIN FEATURES

ADVANCED LIGHT SOURCE CONFIGURATION & ENHANCED BRIGHTNESS

• Equipped with four advanced light sources and precision-reflecting cups, with 50W low beam and 60W high beam output.
• Luminous flux reaches 9800-16800LUX, it offers expansive illumination and far-reaching visibility, surpassing standard headlights for safer night driving.

DUAL LIGHT INTEGRATED DESIGN

• Single lens with dual low beam: delivers a sharp cut-off line and glare-free light, ensuring no distraction to oncoming drivers.
• Single lens with dual high beam: produces dense and intense light with a focused central hotspot, improving hazard anticipation and obstacle avoidance.

PRECISION-FOCUSED BEAM

• Features DOT-compatible reflectors and focusing lenses that produce a perfectly even beam pattern.
• Being free from blinding glare, shadows, or dark spots greatly enhances road visibility and safety for both the driver and others.

RETROFIT CUTTING INSTALLATION

• This projector lens requires modification of the headlight housing (such as cutting or trimming the reflector bowl) to fit properly. This projector lens requires modification of the headlight housing (such as cutting or trimming the reflector bowl) to fit properly.
• It is not a plug-and-play design. Professional installation by an experienced retrofit workshop is strongly recommended to ensure optimal lighting performance and safety.

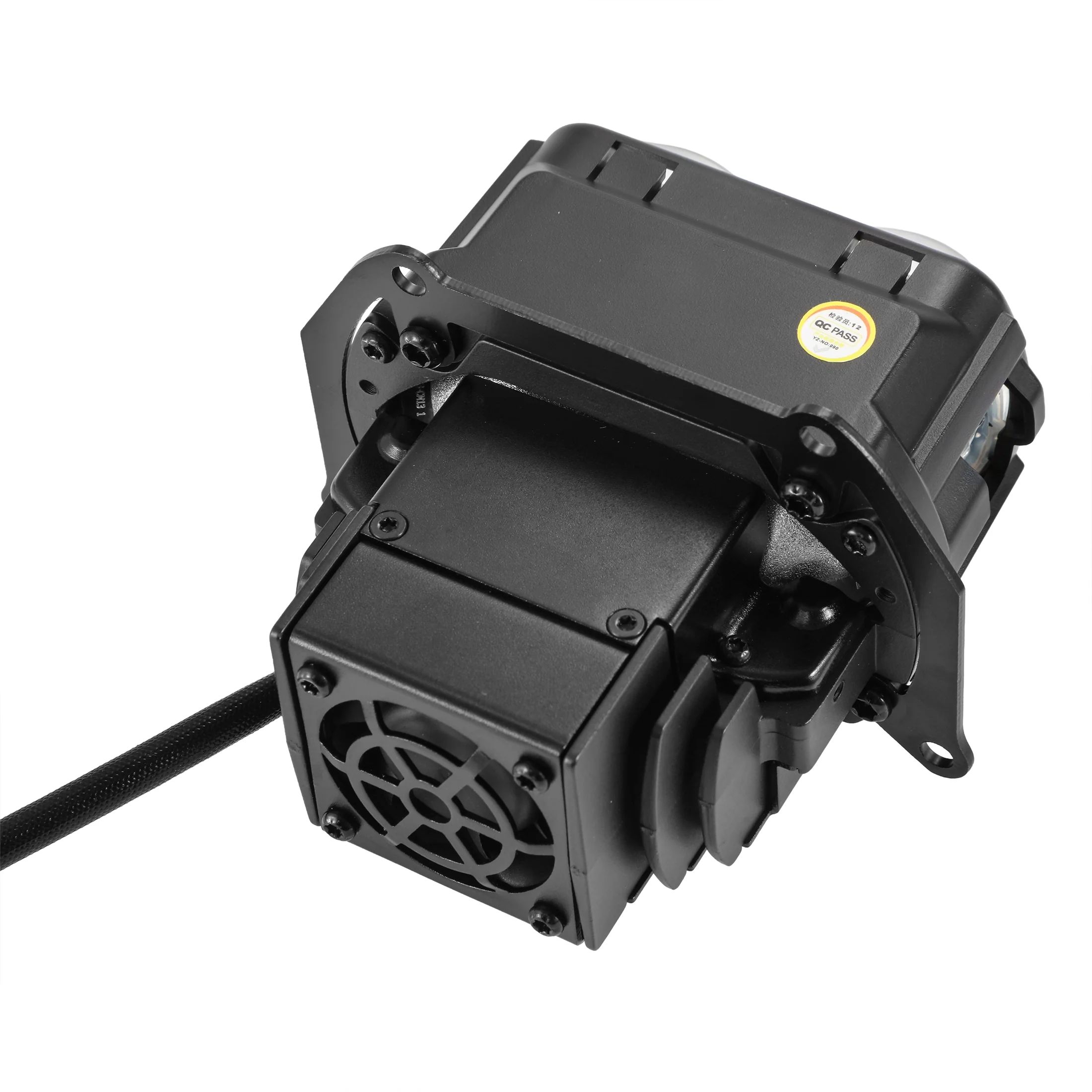

DUAL RAPID COOLING SYSTEM

• Incorporates pure copper heat dissipation fins and a 12,000 RPM silent turbo fan for efficient thermal management. Effectively controls temperature to prevent light decay and prolong lifespan, offering up to 30,000 hours of reliable operation.

SPECIFICATIONS

Size: 3.5 Inch
LED Chips: 6-core low beam chip*2 + 1-core auxiliary light*2
Power: Low Beam 58W/per, High Beam 66W/per
Features: 4 Light Cup, 4 Light Sources
Operating Voltage:12V
LED Quantity(per bulb): 14PCS
Color Temperature: 6000K White
Luminous flux: 9800-16800LUX
Adapter Type: H4, H7, 9005, 9006
Material: Full Metal Body High Clear Lens
Heat Dissipation Mode: Fan Dissipation
LED Lifetime：30,000 Hours
Operating Temperature: -40 Celsius degree~120 Celsius degrees

PACKAGE INCLUDED

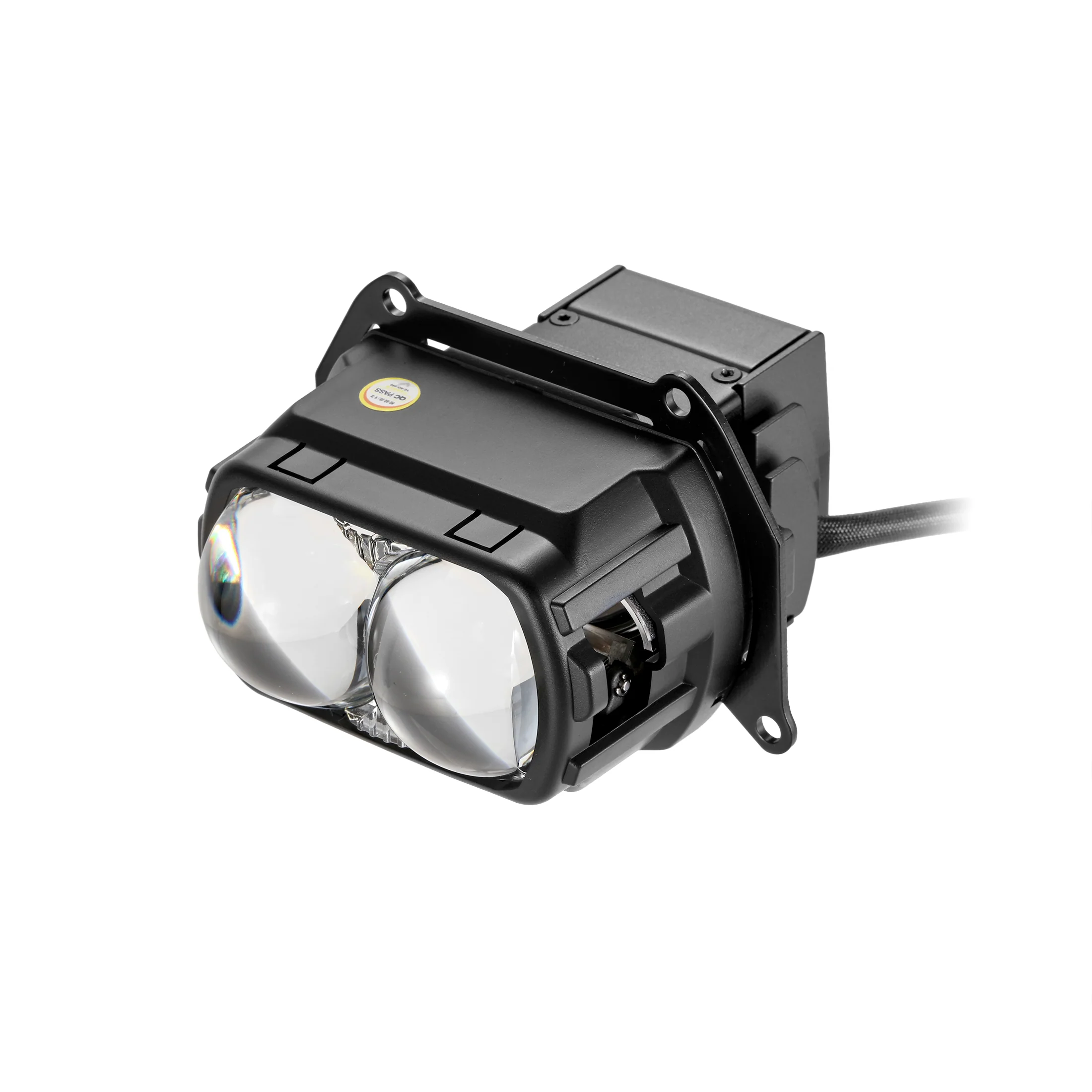

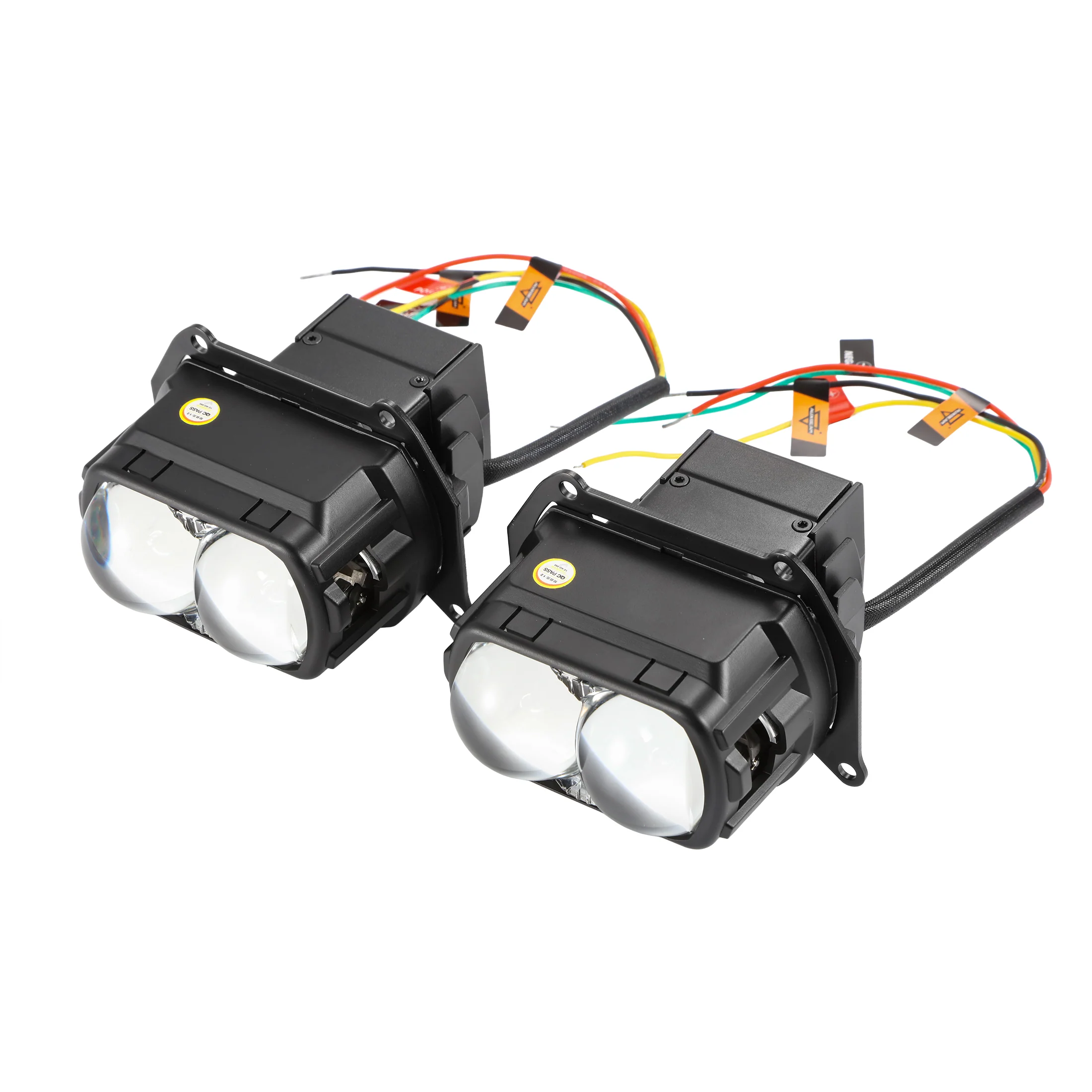

• 3.5 Inch Hyperbolic Rectangular Bi-LED Projector Headlight *2
