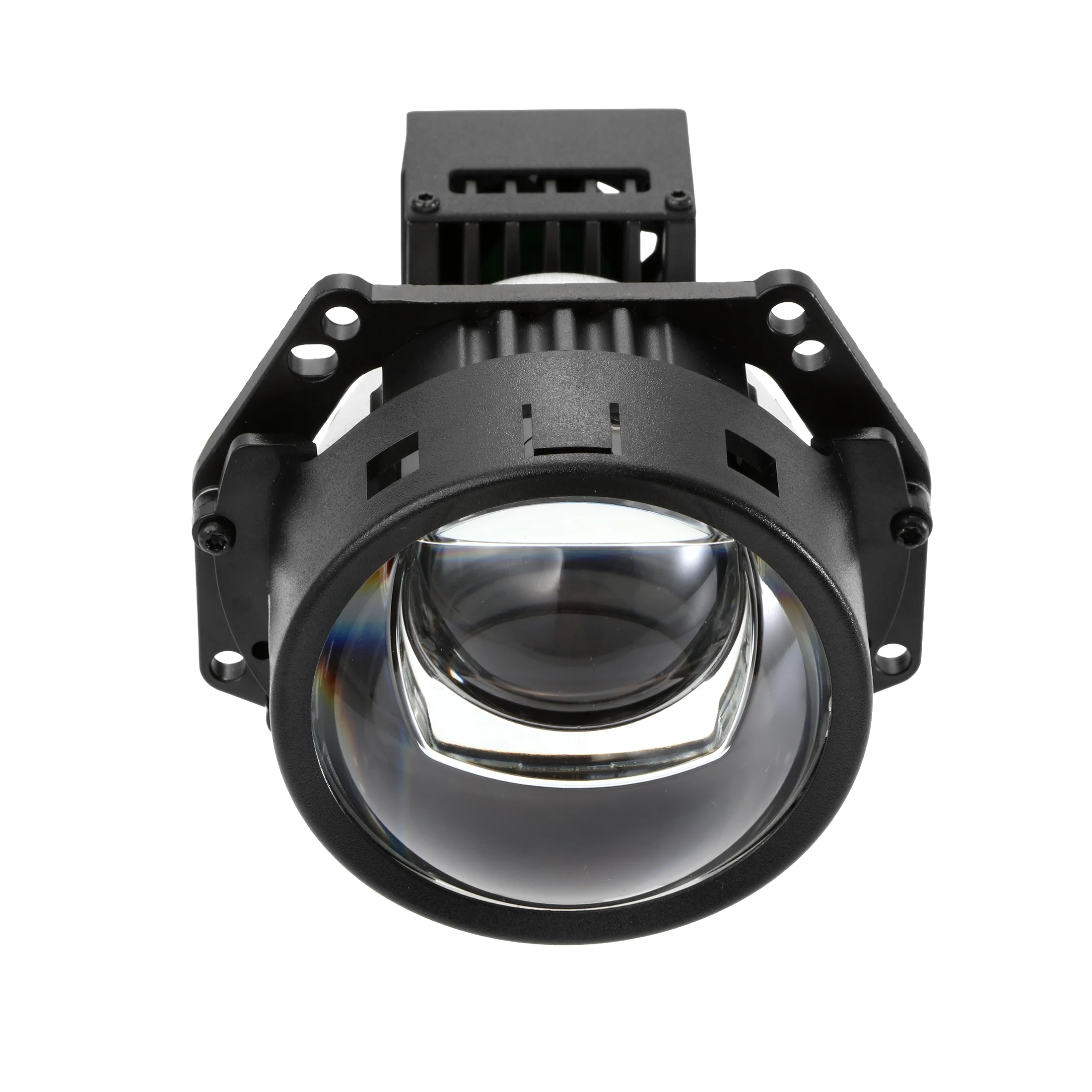

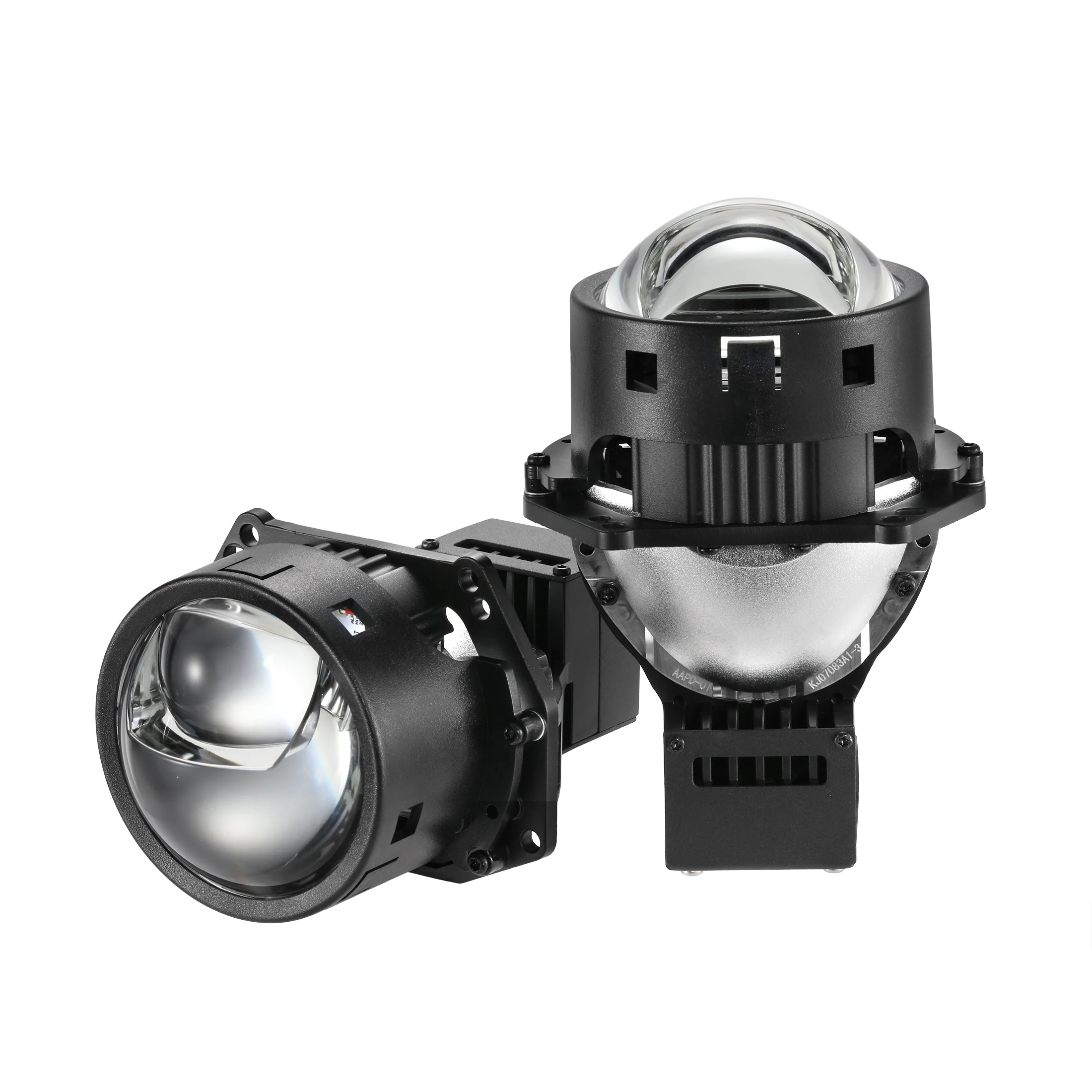

🆕3 Inch 140W Hyperboloid Bi-LED Direct Projector Lens Headlight K9 Series Retrofit Cutting Installation for Car | 2PCS/set
MAIN FEATURES
HIGH BRIGHTNESS & HIGH VISIBILITY
- Each projection lens is equipped with 6 LED chips as low beam and 6 LED chips plus 1 extra LED chip as high beam, ensuring excellent lighting effects.
- Low beam output of 46W/per, high beam output of 70W/per, providing focused and wide road coverage.
HYPERBOLOID DESIGN
- The hyperbolic optical lens consists of two components: the low beam is projected through the large lens, while the high beam is projected through the combination of the large and small lenses, which can achieve the highest efficiency, excellent light output, and excellent long range.
- Brightness is increased by 300%, and the high-beam illumination reaches up to 500 meters, significantly improving nighttime driving safety and visibility.
- The carefully optimized light distribution effectively reduces glare for oncoming vehicles while maximizing road illumination, ensuring the best possible viewing experience for drivers in all conditions.
PRECISION BEAM PATTERN
- Low Beam: With an obviously tangent, wide-angle design and an accurate focus point.
- High Beam: Accurate focus length, long spotlight, no astigmatism.
- Uniform Light Spread: Eliminates dark spots for safer nighttime driving.
RETROFIT CUTTING INSTALLATIONÂ
- This projector lens requires modification of the headlight housing (such as cutting or trimming the reflector bowl) to fit properly. This projector lens requires modification of the headlight housing (such as cutting or trimming the reflector bowl) to fit properly.
- It is not a plug-and-play design. Professional installation by an experienced retrofit workshop is strongly recommended to ensure optimal lighting performance and safety.
EFFICIENT COOLING SYSTEM
- Built-in cooling fans deliver effective heat dissipation, maintaining the LED projector lens at optimal temperatures and extending its service life to up to 30,000 hours.
SPECIFICATIONS
Size: 3 Inch
LED Chips: 6+1pcs LED Chips
Power: Low Beam 46W/per, High Beam 70W/per
Operating Voltage:12V
LED Quantity(per bulb): 7PCS
Color Temperature: 6000K White
Luminous Flux: Low Beam 7000LUX, High Beam 25000LUX (3 Meter Test)
Adapter Type: H4, H7, 9005, 9006
Material: Aluminum Alloy Body + High Clear Lens
Heat Dissipation Mode: Built-in Heat-Sink Fan
LED Lifetime：30,000 Hours
Operating Temperature: -40°C degree~120 °C degrees
PACKAGE INCLUDED
- 3 Inch Hyperboloid Bi-LED Direct Projector Lens Headlight *2
MAIN FEATURES
HIGH BRIGHTNESS & HIGH VISIBILITY
- Each projection lens is equipped with 6 LED chips as low beam and 6 LED chips plus 1 extra LED chip as high beam, ensuring excellent lighting effects.
- Low beam output of 46W/per, high beam output of 70W/per, providing focused and wide road coverage.
HYPERBOLOID DESIGN
- The hyperbolic optical lens consists of two components: the low beam is projected through the large lens, while the high beam is projected through the combination of the large and small lenses, which can achieve the highest efficiency, excellent light output, and excellent long range.
- Brightness is increased by 300%, and the high-beam illumination reaches up to 500 meters, significantly improving nighttime driving safety and visibility.
- The carefully optimized light distribution effectively reduces glare for oncoming vehicles while maximizing road illumination, ensuring the best possible viewing experience for drivers in all conditions.
PRECISION BEAM PATTERN
- Low Beam: With an obviously tangent, wide-angle design and an accurate focus point.
- High Beam: Accurate focus length, long spotlight, no astigmatism.
- Uniform Light Spread: Eliminates dark spots for safer nighttime driving.
RETROFIT CUTTING INSTALLATIONÂ
- This projector lens requires modification of the headlight housing (such as cutting or trimming the reflector bowl) to fit properly. This projector lens requires modification of the headlight housing (such as cutting or trimming the reflector bowl) to fit properly.
- It is not a plug-and-play design. Professional installation by an experienced retrofit workshop is strongly recommended to ensure optimal lighting performance and safety.
EFFICIENT COOLING SYSTEM
- Built-in cooling fans deliver effective heat dissipation, maintaining the LED projector lens at optimal temperatures and extending its service life to up to 30,000 hours.
SPECIFICATIONS
Size: 3 Inch
LED Chips: 6+1pcs LED Chips
Power: Low Beam 46W/per, High Beam 70W/per
Operating Voltage:12V
LED Quantity(per bulb): 7PCS
Color Temperature: 6000K White
Luminous Flux: Low Beam 7000LUX, High Beam 25000LUX (3 Meter Test)
Adapter Type: H4, H7, 9005, 9006
Material: Aluminum Alloy Body + High Clear Lens
Heat Dissipation Mode: Built-in Heat-Sink Fan
LED Lifetime：30,000 Hours
Operating Temperature: -40°C degree~120 °C degrees
PACKAGE INCLUDED
- 3 Inch Hyperboloid Bi-LED Direct Projector Lens Headlight *2
Description
MAIN FEATURES
HIGH BRIGHTNESS & HIGH VISIBILITY
- Each projection lens is equipped with 6 LED chips as low beam and 6 LED chips plus 1 extra LED chip as high beam, ensuring excellent lighting effects.
- Low beam output of 46W/per, high beam output of 70W/per, providing focused and wide road coverage.
HYPERBOLOID DESIGN
- The hyperbolic optical lens consists of two components: the low beam is projected through the large lens, while the high beam is projected through the combination of the large and small lenses, which can achieve the highest efficiency, excellent light output, and excellent long range.
- Brightness is increased by 300%, and the high-beam illumination reaches up to 500 meters, significantly improving nighttime driving safety and visibility.
- The carefully optimized light distribution effectively reduces glare for oncoming vehicles while maximizing road illumination, ensuring the best possible viewing experience for drivers in all conditions.
PRECISION BEAM PATTERN
- Low Beam: With an obviously tangent, wide-angle design and an accurate focus point.
- High Beam: Accurate focus length, long spotlight, no astigmatism.
- Uniform Light Spread: Eliminates dark spots for safer nighttime driving.
RETROFIT CUTTING INSTALLATIONÂ
- This projector lens requires modification of the headlight housing (such as cutting or trimming the reflector bowl) to fit properly. This projector lens requires modification of the headlight housing (such as cutting or trimming the reflector bowl) to fit properly.
- It is not a plug-and-play design. Professional installation by an experienced retrofit workshop is strongly recommended to ensure optimal lighting performance and safety.
EFFICIENT COOLING SYSTEM
- Built-in cooling fans deliver effective heat dissipation, maintaining the LED projector lens at optimal temperatures and extending its service life to up to 30,000 hours.
SPECIFICATIONS
Size: 3 Inch
LED Chips: 6+1pcs LED Chips
Power: Low Beam 46W/per, High Beam 70W/per
Operating Voltage:12V
LED Quantity(per bulb): 7PCS
Color Temperature: 6000K White
Luminous Flux: Low Beam 7000LUX, High Beam 25000LUX (3 Meter Test)
Adapter Type: H4, H7, 9005, 9006
Material: Aluminum Alloy Body + High Clear Lens
Heat Dissipation Mode: Built-in Heat-Sink Fan
LED Lifetime：30,000 Hours
Operating Temperature: -40°C degree~120 °C degrees
PACKAGE INCLUDED
- 3 Inch Hyperboloid Bi-LED Direct Projector Lens Headlight *2
