NOTE: The C9-model decoder is designed for low-power bulbs; for high-power bulbs, please choose the C8-Model decoder.

INTRODUCTION

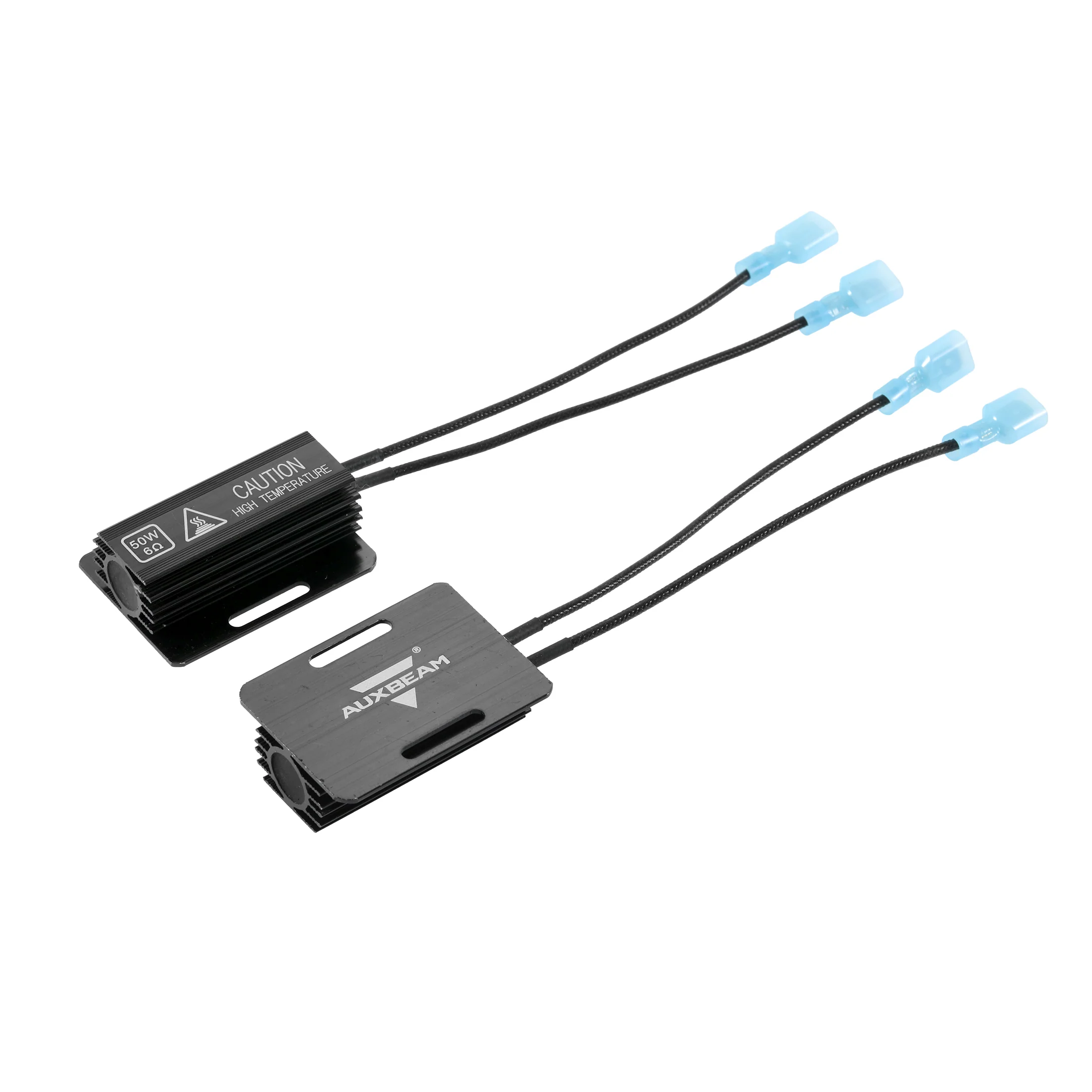

• 50W 6Ohm high power Lights error-free canceller capacitor decoder wire.
• (DIY) Higher universal installation rate, saving space and cost.
• This decoder does not come with the original car socket base.
• (DIY) Use wire clips to connect cables to the decoder.

• Effectively solves over-strobing and instrument panel information errors caused by turn signals, brake lights, and license plate lights.
• Used for turn signals, tail parking lights, brake lights, daytime running lights, license plate lights, etc.

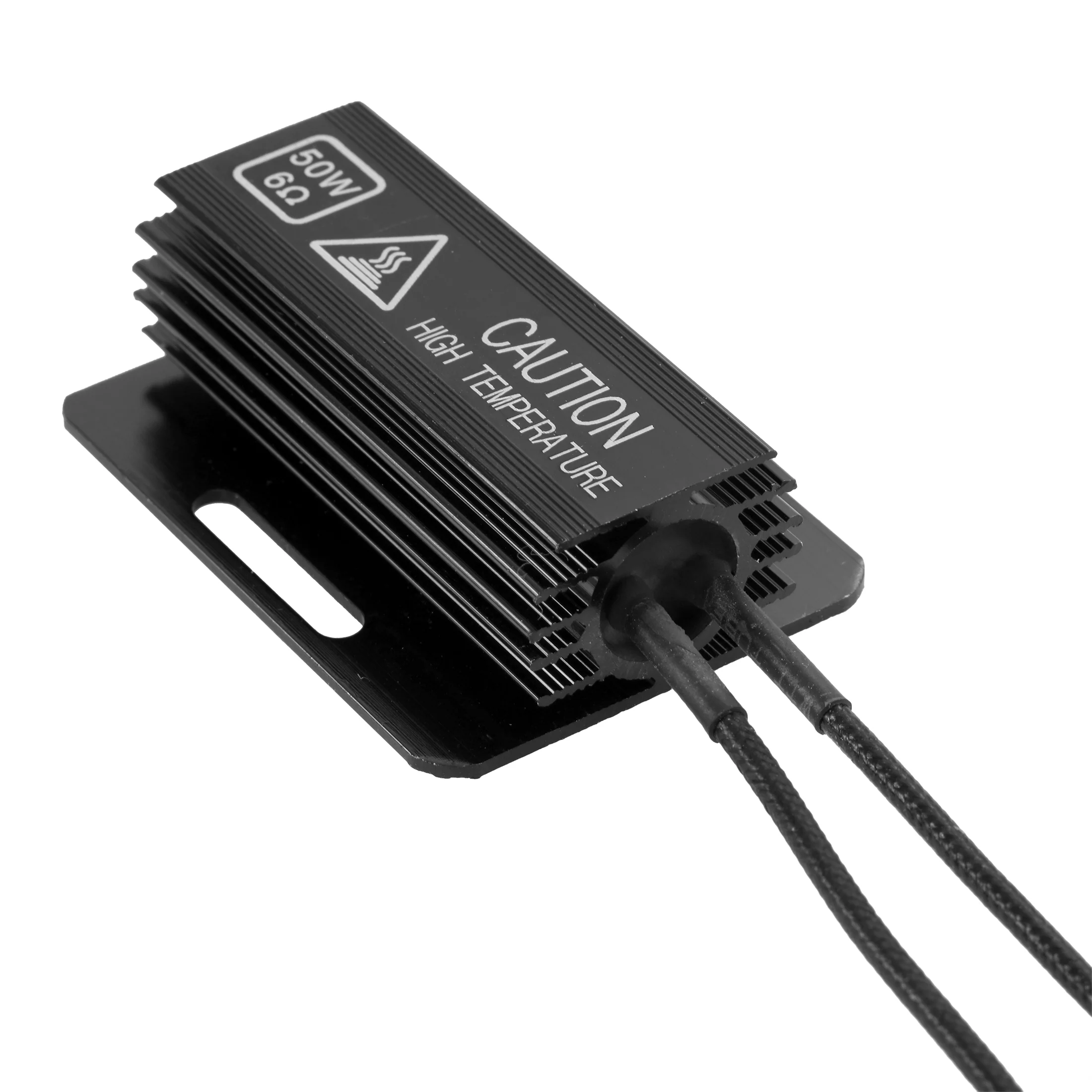

• Warning! Don't Touch It By Hand Directly.
• Load Resistors Heat Up Like Light Bulbs and Get Hot When in Use.
• Ensure they are mounted away from anything that can potentially melt or burn.
• So need to mount them on a metal surface with screws(not included). Keep resistors at least an inch away from plastic parts

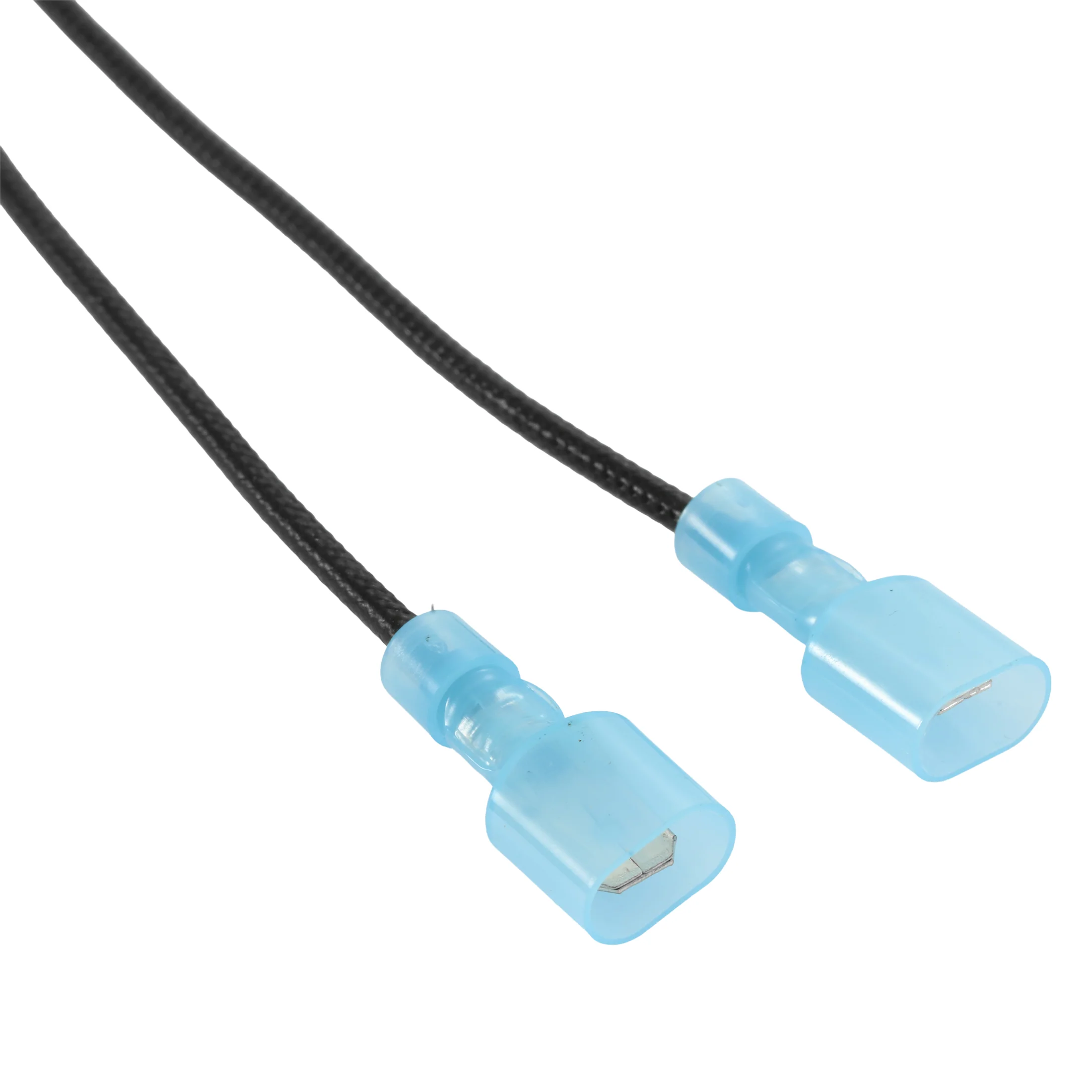

• Cuttable Wire: You may connect the wires with the splice taps provided(quick but maybe not solid). Or you may cut the wires and connect them more solidly

SPECIFICATION

Plug Type: DIY
Voltage: DC12V
Working Power: 50W 6ohms
Operating Temperature: -40°C~+85°C

PACKING INCLUDED

• LED Decoder Adapter *2
• Quick Wire Clips*4
• (One resistor for one bulb, this set can be used for 2pcs LED light bulbs.)
