Vehicle Model Fit For (with halogen headlights)

2005 Chevrolet Equinox
2006 Chevrolet Equinox
2007 Chevrolet Equinox
2008 Chevrolet Equinox

2009 Chevrolet Equinox

Position/Plug Type:
High Low beam: 9007/HB5
Fog light: H11
Back up Light: 921/T15
Brake Light: 1157
Turn Signal Light: 1157
Tail Light: 1157

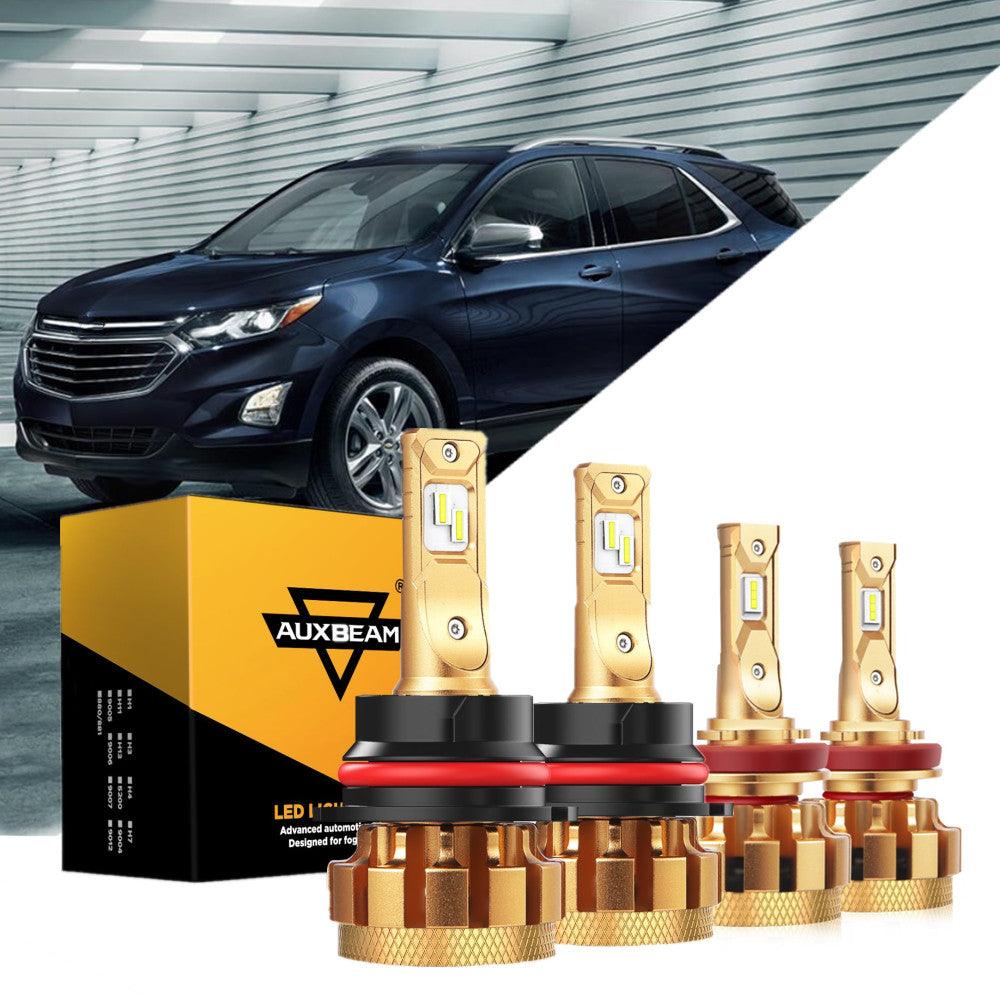

▶F16PLUS INTRODUCTION:
-Upgraded version of F16 series, CSP3570 LED chips, 6500k white, high efficient luminance output.
-0.04inch slimmest side designed, ultra-thin lampstandard design to provide wider viewing angle.
-Compact all-in-one integrated design, external drive, built-in canbus, self-contained decoding to avoid error codes.
-Aviation aluminum with high thermal conductivity, built-in ball-bearing fan with 12000R/Min, maximum heat dissipation.
-Built-in IC, EMC tech avoid current frequency noise caused by electromagnetic interference.
-All round water proof safe lighting IP68.

▶F16PLUS SPECIFICATIONS:
Plug Type:
High Low Beam: 9007
Fog Light: H11
LED Type: CSP 3570 Automotive Grade
Efficacy(2/pcs): 70W
LED Quantity: 24pcs (hi-lo beam)
Raw Lumen(2/pcs): 14000 LM
Current Draw: 2.5 A
Operating Voltage: 9-12V
Color:Natural White
Color Temperature : 6000K
Adjustable Color: No
Material: Aviation 6063 Aluminum
Heat dissipation mode: Fan Dissipation
LED Lifetime: 50000 hours
Waterproof: IP68
Ambient Operating Temperature: 45 celsius degree~150 celsius degree
CAN Bus：Yes

Fits 98% of vehicles: In-built fully upgraded CANbus.
Some sensitive cars may flicker after installed(not quality issue),
specific canbus decoders are needed.

Note:
-Please allow 1-3cm (0.4-1.18") difference due to manual measurement and slight color variation for different display setting.
-Due to the difference between different monitors, the picture may not reflect the actual color of the item.

1157 Back-up/Brake/Turn Signal/Tail Light Bulb

INTRODUCTION:
▶AUXBEAM 12 pieces 3030SMD LED replacement bulbs set.
▶Extremely bright output reaches 1200LM (Hi), 240LM (Lo).
▶Built-in upgraded CANBUS system, instant light on without delay or flash.
▶3 COLORS OPTION:
   6500K Cool White; 3500K Amber; Red
▶Beam Angle: 360degree luminous surface.
▶Fitments Position: Bake/Reverse/Parking/Tail/Turn signal Light

SPECIFICATIONS:
Reference Stocks: 1157 P21/5W BAY15D
LED Type: SMD 3030
Efficacy(2/pcs): 13W (Hi) ; 2W (Lo)
LED Quantity(per bulbs): 12pcs
LED Brightness VS Halogen: 500%
Operating Voltage: 12V
Adjustable Color: No
Material: Aviation 6063 Aluminum
Heat dissipation mode: Aluminum Dissipation
LED Lifetime: 30000 hours
Waterproof: IP68
Ambient Operating Temperature: -40 celsius degree-150 celsius degree
CAN Bus： No
Note: fits 98% of vehicles;
Some sensitive cars may flicker after installation (not a quality issue), additional canbus decoders are needed.
