Features:

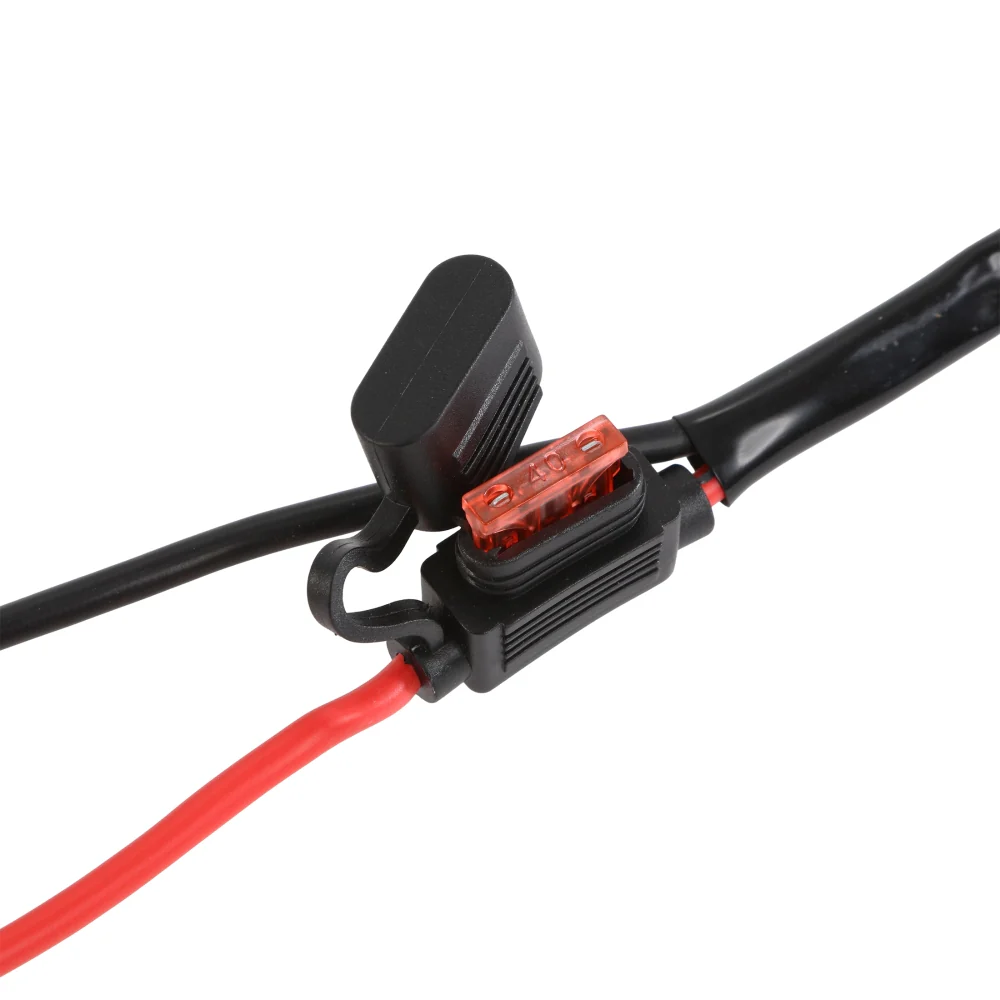

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+RGB Backlight mode, and also includes the 8 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuse to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3.3-meter 11AWG（4mm²） main wire&18AWG（0.75 mm²）RGB Backlight wire，it can effectively overload the MAX 40A current, that is, the load power is 384W, RGB Backlight power Max 6A（72W）in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 8-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Wire Length: 3.3M Extension Cord

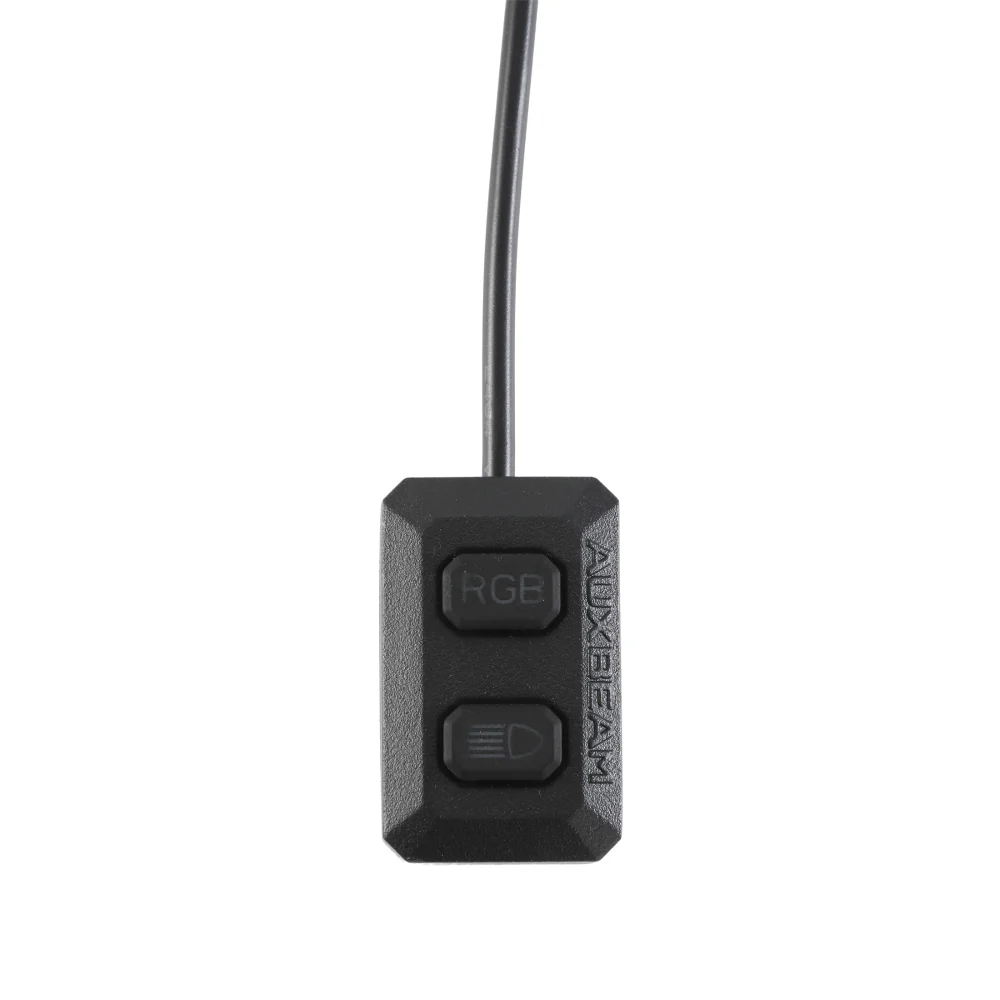

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
ACC Line：1.2M
DT-plug Connector: 3 PIN
Wire Size: 11AWG National Standard（RGB Backlight 18AWG）
Wire Material: 4 mm² copper wire（RGB Backlight 0.75mm²）
Working voltage: 12V Only（Can't Replaceable 24V relay）
Leads Power: Max 384W（current 40A）（RGB Backlight 72W&6A）
Fuse Size: 40A
Delay: 12V Delay
Applicable: Color Play RGB Series Use Only (ZD000893,ZD000894,ZD000895)

Packing Included:

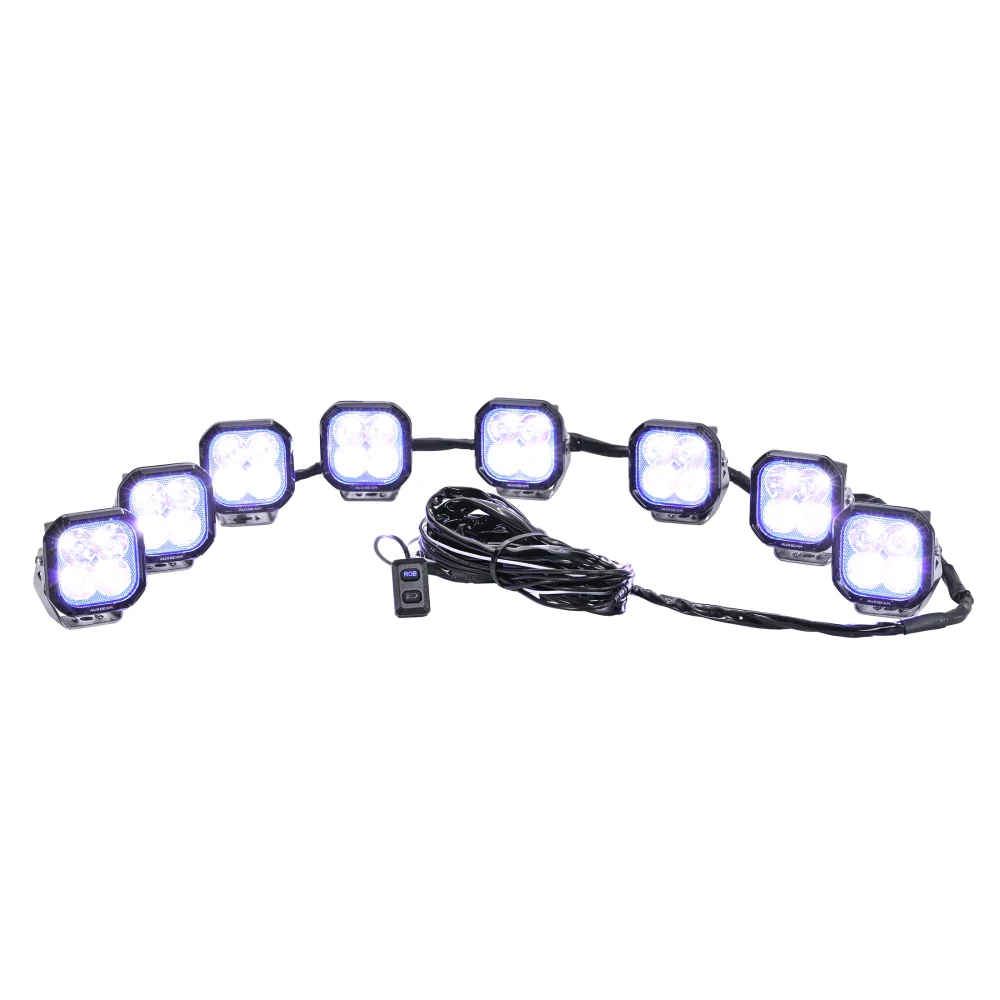

1 x 8-Pod Power Harness (lights not included)
