NOTE: THIS PRODUCT IS DESIGNED FOR LEFT-HAND DRIVE (LHD) VEHICLES ONLY.

NOTE: If you need to modify the H4 sockets, you will need to purchase an option with the H4 wiring harness.

If you need to modify the H1 H7 9005 9006 sockets, you will need to purchase an option with the H1 H7 9005 9006 wiring harness.This will ensure that you have the necessary components to make the modifications safely and effectively.

MAIN FEATURES

ULTRA BRIGHTNESS

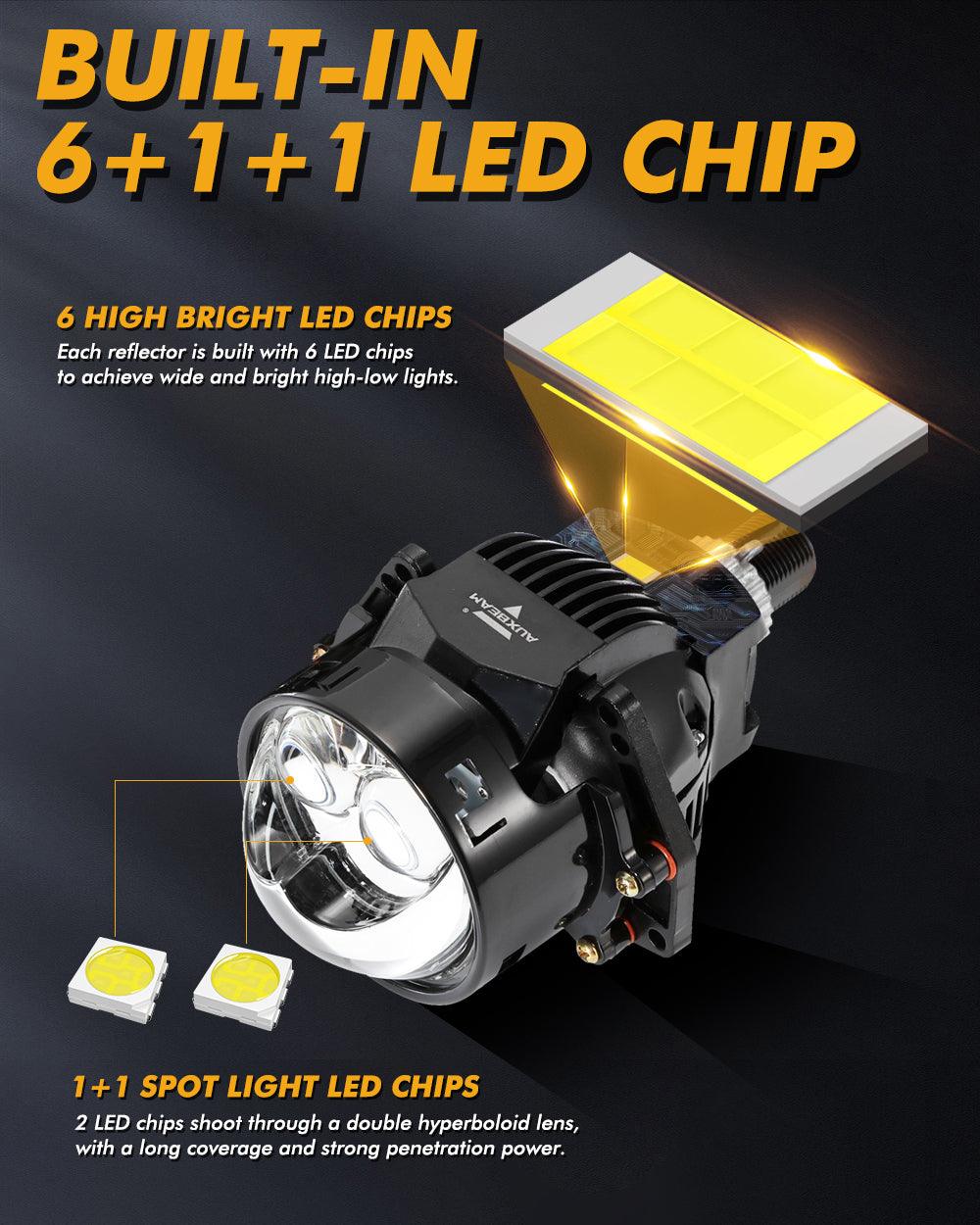

• Adopt 6pcs LED Chips as Low Beam, 6pcs LED chips + 2pcs laser led chips as high beam.

• 2 individual LED Spotlight chips emit strong, focused, and long-range third light through the 2 small lenses, providing 500% brighter than halogen bulbs and 300% brighter than normal LED bulbs.

HYPERBOLOID DESIGN

• The double hyperboloid high clear lens can provide high efficiency and excellent light output wide range of illumination, ultra-long range distance, and strong lighting. The longest irradiation distance can reach 400 meters.

PERFECT BEAM PATTERN

• Low Beam: With obviously tangent, wide angle design, accurate focus point. Nice and sharp cut-off line, perfect beam pattern without blind zone and dark spots.
• High Beam: Accurate focus length, long spotlight, no astigmatism. A properly distributed and wide beam pattern.
• The third Spotlight beam: Super focused and bright, long-distance range.

NON-DESTRUCTIVE INSTALLATION

• Same Installation Bracket As For Hella G3 G5 Projector Lens.
• It has a threaded shaft base that locks the projector to automotive headlight hardware and can be installed in H4/H7/9005/9006 headlights. The 3-inch lightweight body is suitable for 95% of cars.
• Warm Tips: Not plug and play, professional modification is recommended

EFFICIENT COOLING SYSTEM

• The full aviation aluminum body and built-in 12,000RPM silent turbo cooling fan, provide fast and stable heat dissipation to maximize the lifetime and brightness of the bi-LED projector lens headlight.

SPECIFICATIONS

Size: 3 Inch
LED Chips: 6+1+1 LED Chips
Power: Low Beam 38W/per, High Beam 68W/per
Operating Voltage:12V
LED Quantity(per bulb): 8PCS
Color Temperature: 6000K White
Luminous flux: 6540-18800LUX
Adapter Type: H4, H7, 9005, 9006
Len Material: HD Glass
Material: Full Metal Body + High Clear Lens
Heat Dissipation Mode: Built-in Heat-Sink Fan
LED Lifetime：30,000 Hours
Operating Temperature: -40 Celsius degree~120 Celsius degrees

PACKAGE INCLUDED

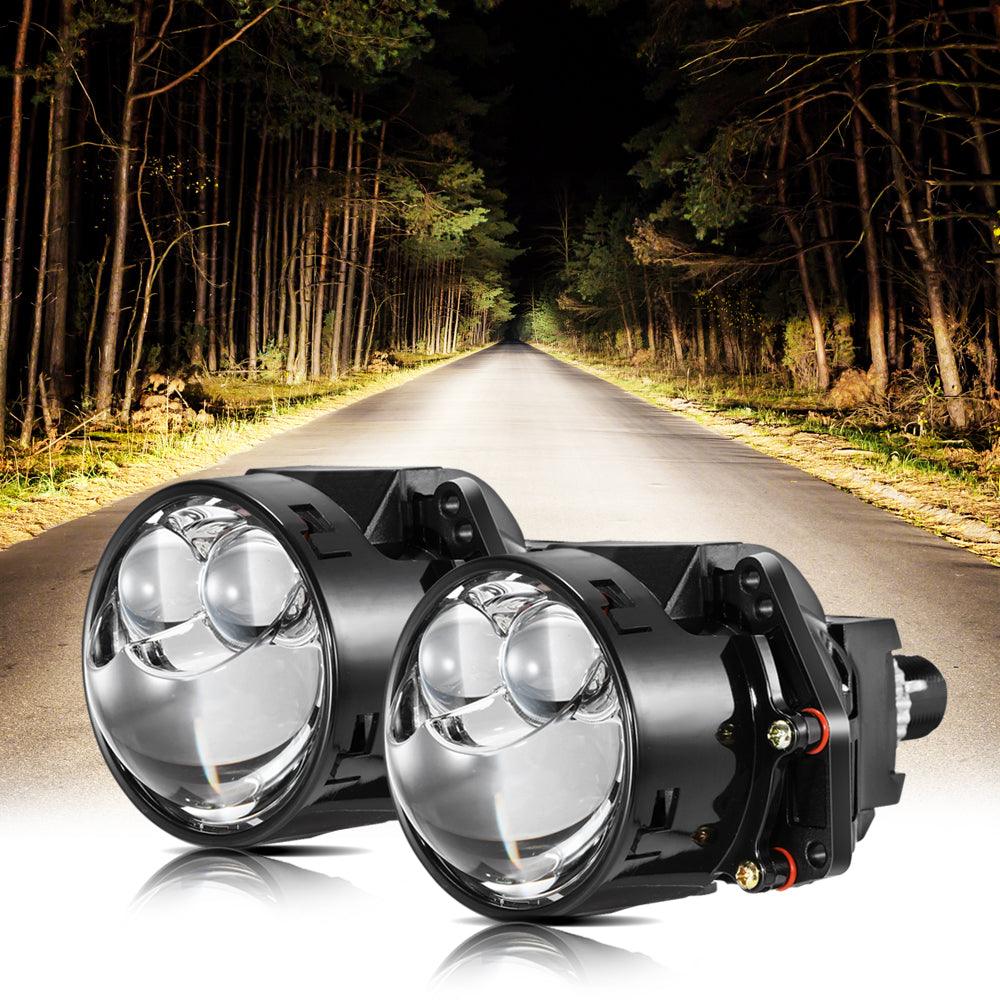

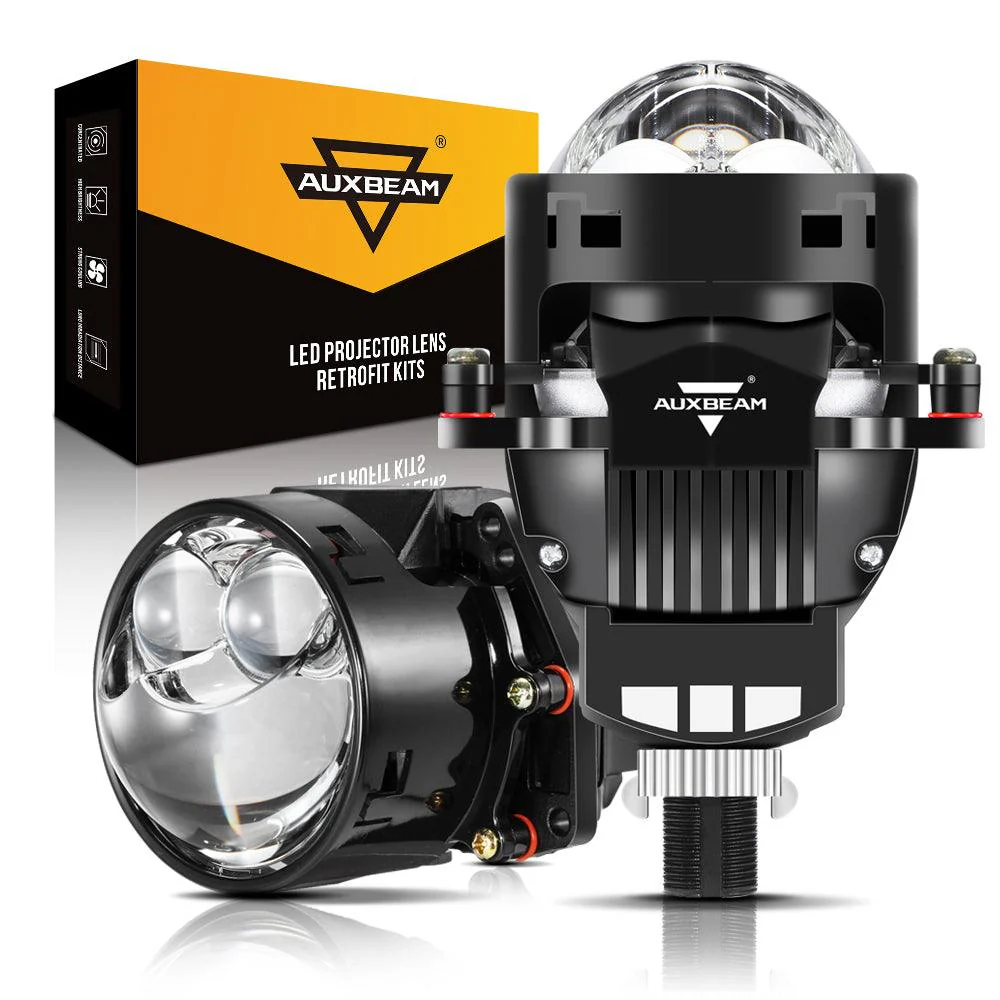

• 3 Inch Double Hyperboloid Bi-LED Projector Lens Headlight *2
